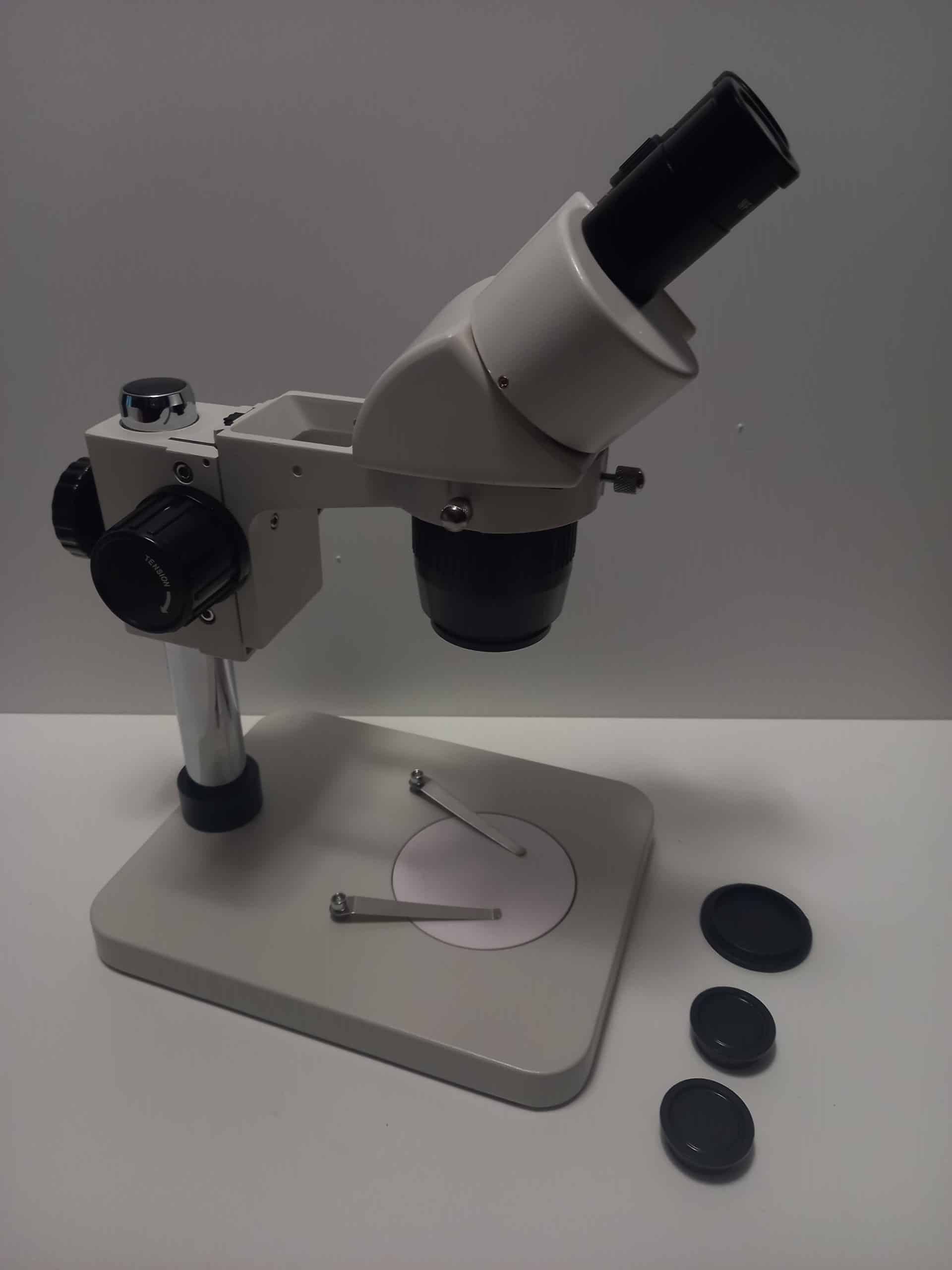

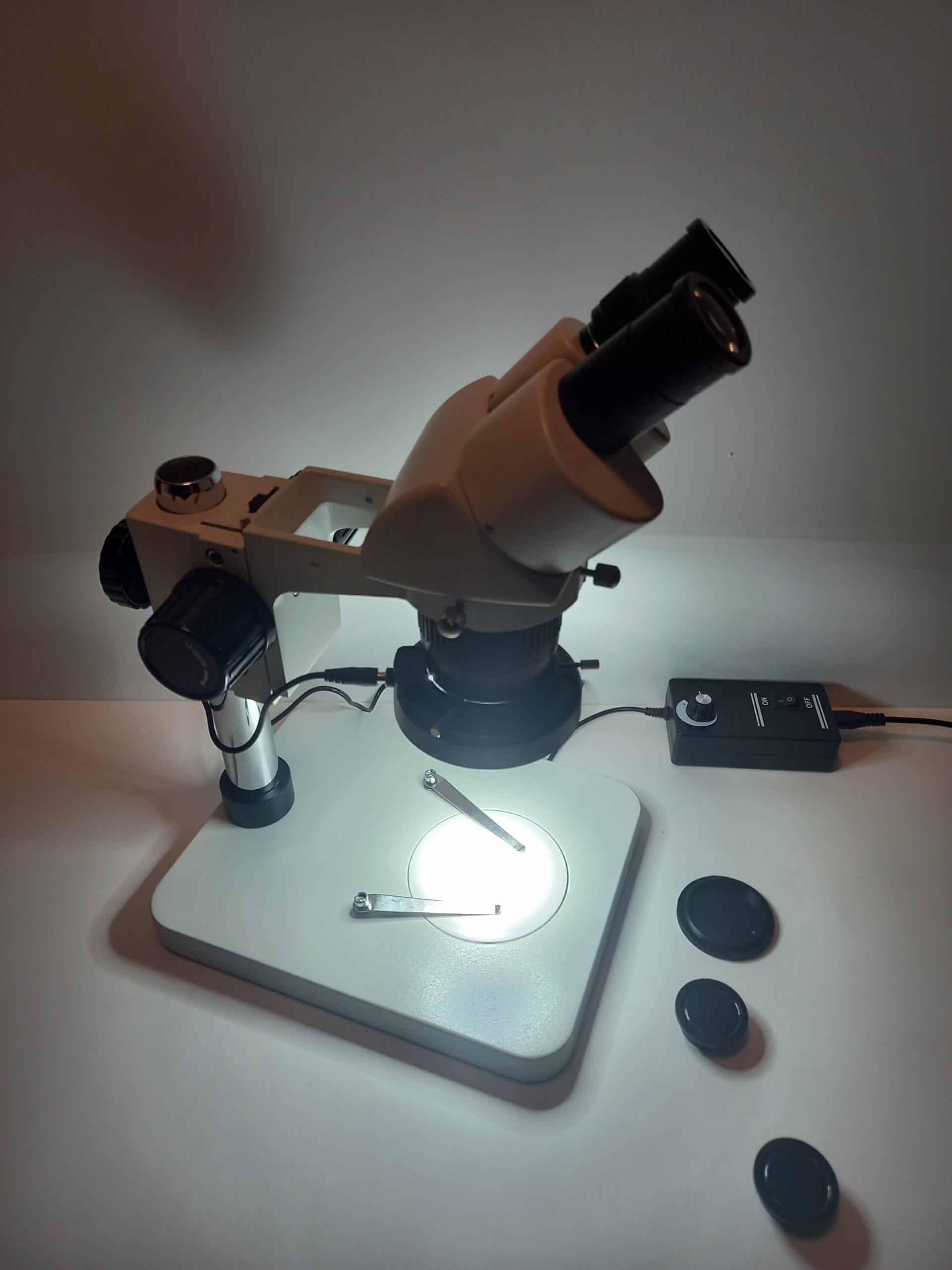

PSC Stereomicroscope
Application
The PSC Stereomicroscope, with a wide visible field, is designed for stereoscopic observation of samples with the use of changeable magnification. The microscope is equipped with its own power supply for regulation of light and a table for cross light observation.
| Magnification: | |
|---|---|
| with 10x eyepiece with 20x eyepiece with 25x eyepiece and N 1.6x lens | 6.3x - 40x 12.6x - 80x 25.2x - 160x |
| Visible Field: | |
| * max * min | 40mm (magn. 6.3x) 1.5mm (magn. 160x) |
| Lens magnification: | 0.63x, 1.0x, 1.6x, 2.5x, 4.0x |
| Light: | Two lamps 6V/15W |
| Measuring eyepiece: | 12STS |
| Measuring eyepiece Magn. | 12x |
PSC Stereomicroscope Head
Application
The stereomicroscope head is used to mount the PSC Stereomicroscope onto the WS22/WS22B/WS25 frame. It facilitates precise monitoring of the cutting process.
